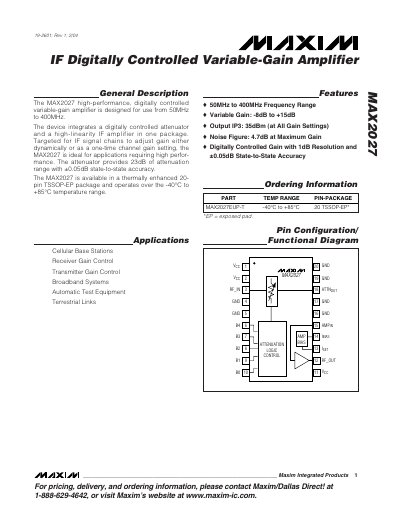

The MAX2027 is a high-performance, digitally controlled variable-gain amplifier designed for use from 50MHz to 400MHz. It integrates a digitally controlled attenuator and a high-linearity IF amplifier in one package. The MAX2027 is ideal for applications requiring high performance and is targeted for IF signal chains to adjust gain either dynamically or as a one-time channel gain setting. The attenuator provides 23dB of attenuation range with ±0.05dB state-to-state accuracy. The MAX2027 is available in a thermally enhanced 20-pin TSSOP-EP package and operates over the -40°C to +85°C temperature range.
The MAX2027 is a high‑performance, digitally controlled variable‑gain amplifier designed for IF signal chains from 50 MHz to 400 MHz. It integrates a digital attenuator (23 dB range, ±0.05 dB accuracy) and a fixed‑gain, high‑linearity IF amplifier in a 20‑pin TSSOP‑EP package.
Key features include 1 dB gain‑control resolution, output IP3 of 35 dBm, noise figure of 4.7 dB at maximum gain, and operation over –40 °C to +85 °C. Recommended external components, layout guidelines, and thermal considerations are provided for optimal performance.
| Frequency Range | 50 MHz – 400 MHz |
|---|---|
| Gain Range | -8 dB to +15 dB |
| Attenuation Range | 23 dB |
| Gain‑Control Resolution | 1 dB |
| Gain‑Control Accuracy | ±0.05 dB |
| Output IP3 | 35 dBm |
| Noise Figure (max gain) | 4.7 dB |
| Supply Voltage | 4.75 V – 5.25 V |
| Supply Current | 60 mA – 75 mA |
| Package | 20‑pin TSSOP‑EP |
| Operating Temperature | –40 °C to +85 °C |
The digital attenuator provides a 23 dB attenuation range with ±0.05 dB state‑to‑state accuracy.
The device operates from 4.75 V to 5.25 V supply voltage.
The MAX2027 delivers an output third‑order intercept point of 35 dBm at all gain settings.
It is supplied in a 20‑pin TSSOP‑EP package with an exposed thermal pad.
