The MAX19505 is a dual-channel 8-bit ADC with a maximum sample rate of 65Msps. It operates from a 1.8V supply and supports ZIF and IF sampling.

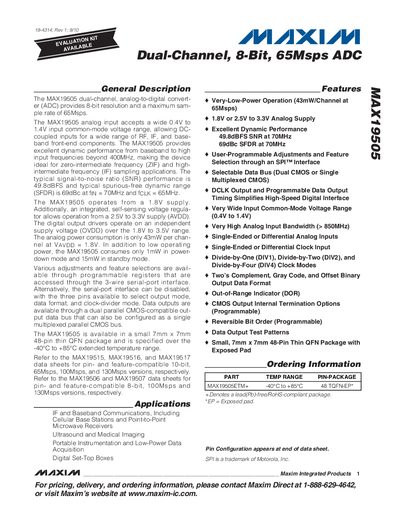

The MAX19505 dual‑channel analog‑to‑digital converter provides 8‑bit resolution with a maximum sample rate of 65 Msps. It operates from a 1.8 V supply (or 2.5 V‑3.3 V via an internal regulator) and consumes only 43 mW per channel at 65 Msps. The device features a wide 0.4 V‑1.4 V common‑mode input range and delivers 49.8 dBFS SNR and 69 dB SFDR at 70 MHz.
The ADC is offered in a compact 7 mm × 7 mm 48‑pin thin QFN package and is rated for –40 °C to +85 °C operation. It includes programmable registers accessed via a 3‑wire SPI interface, selectable dual or multiplexed CMOS data buses, and various power‑management modes (active, standby, power‑down).
| Resolution | 8 bits |
|---|---|
| Maximum Sample Rate | 65 Msps |
| Input Common‑Mode Voltage Range | 0.4 V to 1.4 V |
| Analog Supply Voltage | 1.8 V (or 2.5 V‑3.3 V via regulator) |
| Power Consumption (Active) | 43 mW per channel |
| Signal‑to‑Noise Ratio (70 MHz) | 49.8 dBFS |
| Package | 48‑pin thin QFN, 7 mm × 7 mm |
| Operating Temperature Range | –40 °C to +85 °C |
The MAX19505 can sample at up to 65 Msps.
It accepts a common‑mode input voltage from 0.4 V to 1.4 V.
The device consumes about 43 mW per channel when operating at 1.8 V.
It is offered in a 48‑pin thin QFN package measuring 7 mm × 7 mm.
