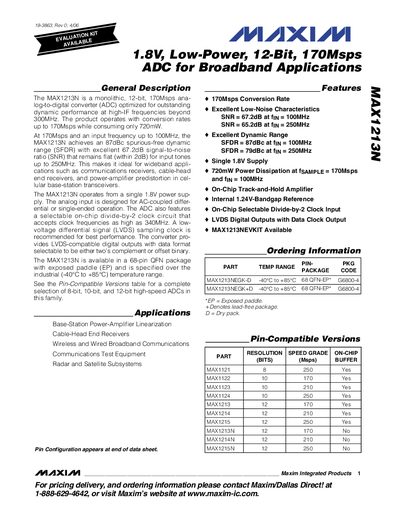

The MAX1213N is a 12-bit 170Msps analog-to-digital converter that is optimized for outstanding dynamic performance at high-IF frequencies beyond 300MHz. It features low power consumption, high dynamic range, and good linearity.
The MAX1213N is a monolithic 12‑bit analog‑to‑digital converter optimized for broadband applications up to 300 MHz IF. It operates from a single 1.8 V supply, delivers up to 170 Msps conversion rate, and consumes only 720 mW at full speed.
Key features include an SNR of 67.2 dB at 100 MHz, SFDR of 87 dBc, LVDS‑compatible digital outputs, on‑chip track‑and‑hold, and a selectable divide‑by‑2 clock. The device is offered in a 68‑pin QFN‑EP package and is rated for –40 °C to +85 °C operation.
| Resolution | 12 bits |
|---|---|
| Maximum Sampling Rate | 170 MHz |
| Power Dissipation | 720 mW at 170 Msps |
| Supply Voltage | 1.8 V (single supply) |
The device supports a maximum sampling rate of 170 MHz.
It is specified for operation from –40 °C to +85 °C.
The analog supply voltage can be 1.70 V to 1.90 V.
The package code is G6800‑4.
