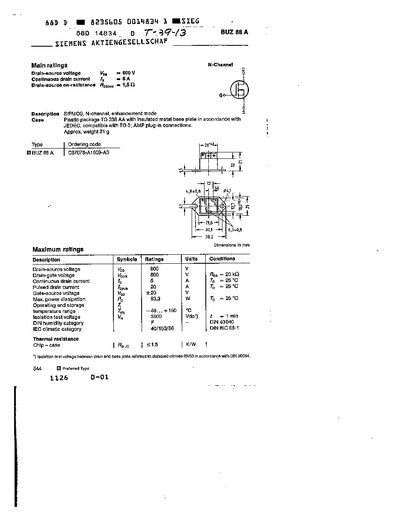

The BUZ 88 A is an N‑channel enhancement‑mode MOSFET supplied in a plastic TO‑238‑AA package with an insulated metal base plate. The document lists its main ratings, maximum ratings, and detailed electrical characteristics.
Key specifications include a drain‑source voltage of 800 V, continuous drain current of 5 A, on‑state resistance of about 1.5 mΩ, and a maximum power dissipation of 83.3 W. Thermal resistance, temperature range, and various capacitance values are also provided for design reference. This manual is written in German.
| Drain‑source voltage (VDS) | 800 V |
|---|---|
| Continuous drain current (ID) | 5 A |
| On‑state resistance (RDS(on)) | 1.5 mΩ |
| Maximum power dissipation (PD) | 83.3 W |
The maximum drain‑source voltage is 800 V.
It can handle a continuous drain current of 5 A.
The device can dissipate up to 83.3 W.
