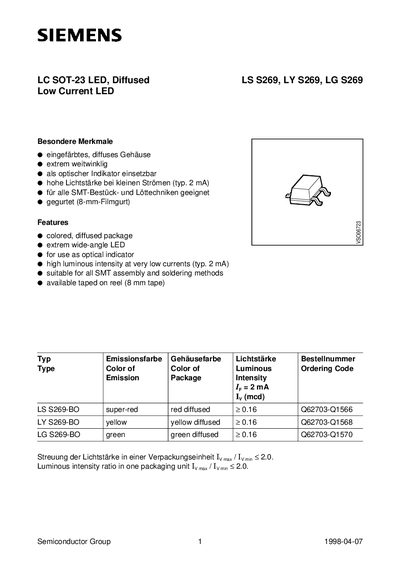

LS S269, LY S269, LG S269 are three low-power LED products, using SOT-23 package, red, yellow, green three kinds of emission color, brightness ≥0.16 mcd. The features are that colored, diffused package is used, the viewing angle is extremely wide, and it can be used as an optical indicator. It can be used with all SMT assembly and soldering techniques, and a taped version is available.
The LS S269‑BO, LY S269‑BO and LG S269‑BO are diffused low‑current LEDs supplied in an SOT‑23 package. They are designed for use as optical indicators with high luminous intensity at very low currents (typ. 2 mA) and are suitable for all SMT assembly and soldering processes. The devices are available on 8‑mm tape reels.
The datasheet provides maximum ratings, electrical and optical characteristics, spectral emission curves, and package dimensions. Key parameters include an operating temperature range of –55 °C to +100 °C, a typical forward current of 7.5 mA, surge current capability of 150 mA, and a reverse voltage of 5 V. Optical data list peak emission wavelengths of 635 nm (red), 586 nm (yellow) and 565 nm (green) with a 140° viewing angle. This manual is written in German.
| Operating temperature range | -55 °C … +100 °C |
|---|---|
| Storage temperature range | -55 °C … +100 °C |
| Junction temperature (max) | +100 °C |
| Typical forward current (IF) | 7.5 mA |
| Reverse voltage (VR) | 5 V |
The devices operate from –55 °C up to +100 °C.
