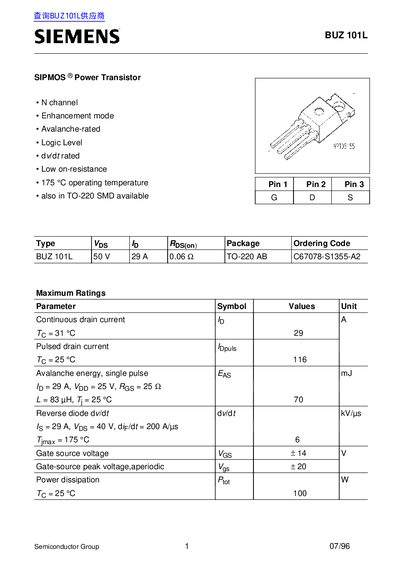

BUZ 101L is an N-channel enhancement mode avalanche-rated logic level dv/dt rated low on-resistance power transistor, with a maximum operating temperature of 175 °C and a TO-220 AB package.
The BUZ 101L is an N‑channel, enhancement‑mode, avalanche‑rated power transistor with logic‑level gate drive. It is offered in a TO‑220AB package and is suitable for applications requiring low on‑resistance and high current capability.
The document lists maximum ratings such as a continuous drain current of 29 A, pulsed drain current of 116 A, and a power dissipation of 100 W at 25 °C. Electrical characteristics include a drain‑source breakdown voltage of 50 V, gate‑threshold voltage between 1.2 V and 2 V, and an on‑resistance ranging from 0.045 Ω to 0.06 Ω. Operating temperature spans –55 °C to 175 °C.
| Maximum continuous drain current (Id) | 29 A |
|---|---|
| Maximum pulsed drain current (Id,puls) | 116 A |
| Maximum power dissipation (Pd) | 100 W @ 25 °C |
The BUZ 101L can handle a continuous drain current of 29 A.
The device can dissipate up to 100 W at a case temperature of 25 °C.
