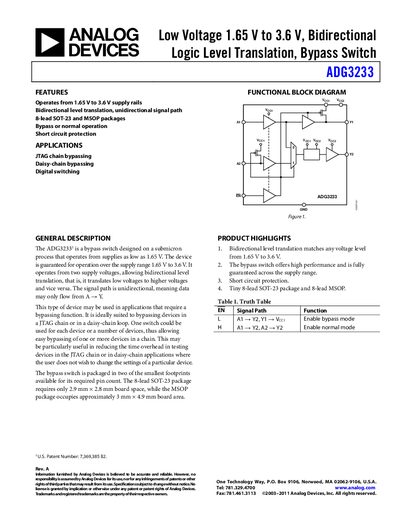

The ADG3233 is a bidirectional logic level translator with a operating voltage range of 1.65V to 3.6V, and it features a bypass switch.
The ADG3233 bypass switch operates from 1.65 V to 3.6 V supply rails and provides bidirectional level translation with a unidirectional signal path. It is intended for JTAG chain or daisy‑chain bypassing, digital switching and other applications where a compact bypass function is needed.
The datasheet lists electrical characteristics such as propagation delay, enable/disable times, leakage currents, and absolute maximum ratings. Package options include 8‑lead SOT‑23 and MSOP footprints, and the ordering guide provides part numbers for each package and temperature‑range variant.
| Supply Voltage Range | 1.65 V to 3.6 V |
|---|---|
| Package Types | 8‑lead SOT‑23 and MSOP |
| Operating Temperature Range | 40 °C to +85 °C |
| Maximum Continuous Output Current | 25 mA |
The device operates from 1.65 V to 3.6 V supply rails.
It is offered in 8‑lead SOT‑23 and 8‑lead MSOP packages.
The device is rated for industrial temperatures from 40 °C to +85 °C.
