ADG3232 is a low voltage 2-1 mux, which provides bidirectional level translation, the working voltage range is 1.65V to 3.6V, and it is manufactured by sub-micron process and packaged in 8-pin SOT-23. It has short circuit protection and is compatible with LVTTL/CMOS
The ADG3232 is a level‑translator 2‑1 mux designed on a sub‑micron process. It operates from two independent supply rails (VCC1 and VCC2) ranging from 1.65 V to 3.6 V, providing bidirectional level translation and a unidirectional signal path from A to Y. The device includes short‑circuit protection and is compatible with LVTTL/CMOS logic levels.

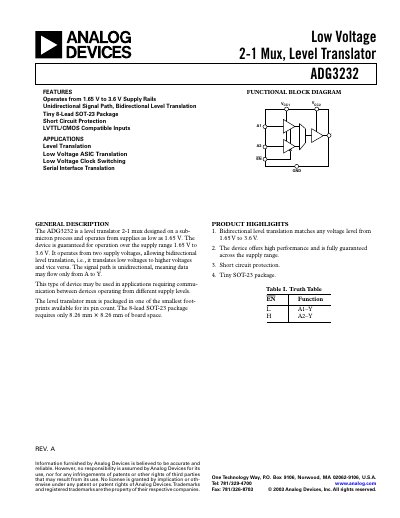

The datasheet details electrical specifications, pin configuration, ordering information, absolute maximum ratings, and typical performance curves such as propagation delay, enable/disable times, and leakage currents. Mechanical data for the 8‑lead SOT‑23 (RJ‑8) package and test circuit examples are also provided.
| Supply Voltage Range | 1.65 V to 3.6 V |
|---|---|
| Input High Voltage (VIH) at VCC1 = 3.0‑3.6 V | 1.35 V |
| Input Low Voltage (VIL) at VCC1 = 1.65‑1.95 V | 0.35 V |
| Quiescent Supply Current (ICC1) | 2 µA |
| Package | 8‑lead SOT‑23 (RJ‑8) |
The device operates from 1.65 V to 3.6 V on both supply rails.
It is supplied in an 8‑lead SOT‑23 (RJ‑8) package.
Yes, it can translate voltages both up and down between the two supply rails.
