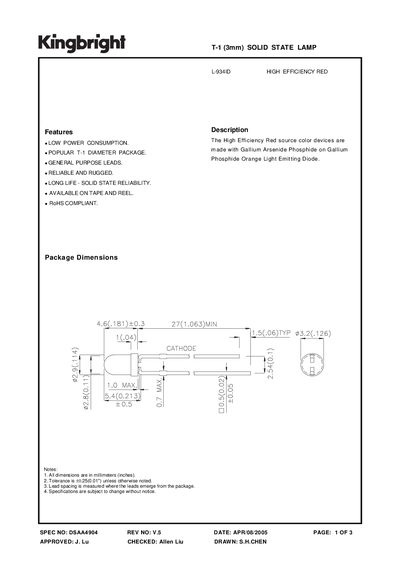

The L-934ID HIGH EFFICIENCY RED is a high efficiency red light emitting diode with low power consumption, popular T-1 diameter package, general purpose leads, reliable and rugged, long life solid state reliability, available on tape and reel.
The Kingbright L-934ID is a high‑efficiency red LED in a T‑1 (3 mm) solid‑state package. It uses a GaAsP/GaP structure and is RoHS compliant, suitable for general‑purpose lighting and indicator applications.
The sheet provides key electrical and optical data such as a peak wavelength of 627 nm, forward voltage of 2.0‑2.5 V at 20 mA, reverse current of 10 µA, and a power dissipation rating of 105 mW. Package dimensions, temperature limits, and derating curves are also listed.
| Power Dissipation | 105 mW |
|---|---|
| Operating Temperature | -40 °C to +85 °C |
The LED can tolerate up to 5 V reverse voltage.
It operates from –40 °C up to +85 °C.
