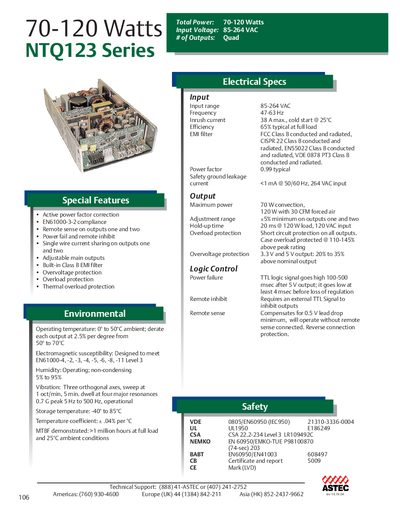

This product is a 70-120 Watt NTQ123 Series power supply with active power factor correction, EN61000-3-2 compliance, remote sensing on outputs one and two, power fail and remote inhibit, single wire current sharing on outputs one and two, adjustable main outputs, built-in Class B EMI filter, overvoltage protection, overload protection and thermal overload protection.
The NTQ123 Series from Emerson Network Power is a compact power supply offering 70 W convection‑cooled and up to 120 W forced‑air cooling. It supports a wide input voltage range (85‑264 VAC) and includes active power‑factor correction with a typical PF of 0.99.
Key features include overload and short‑circuit protection, remote‑sense on both outputs, adjustable output voltage, and built‑in Class B EMI filtering. The unit meets multiple safety and EMC standards (UL1950, CE, EN61000‑3‑2, etc.) and operates from 0 °C to 50 °C ambient temperature with a hold‑up time of 20 ms at full load.
| Input voltage range | 85‑264 VAC |
|---|---|
| Input frequency | 47‑63 Hz |
| Inrush current | 38 A max |
| Efficiency | 65 % typical at full load |
| Power factor | 0.99 typical |
| Maximum power (convection cooling) | 70 W |
| Maximum power (forced air) | 120 W |
| Hold‑up time | 20 ms @ 120 W load |
| Operating temperature | 0 °C to 50 °C ambient |
| Storage temperature | -40 °C to 85 °C |
| MTBF | >1 million hours at full load |
The unit accepts an input voltage range of 85 VAC to 264 VAC.
It provides overload, short‑circuit, overvoltage, thermal overload, and power‑fail TTL signal protection.
Yes, remote sense is available on both outputs to compensate for lead voltage drop.
