The LDO06C series is an embedded power solution designed for business-critical continuity. It has a 6A output current rating, an input voltage range of 3-13.8 Vdc, and an adjustable output voltage range of 0.59-5.1 V. The LDO06C series offers excellent transient response, minimum airflow requirements, and a small package size. It is also compliant with RoHS regulations.
The LDO06C Series from Emerson Network Power provides a 30 W, 6 A buck‑converter solution for business‑critical continuity. It offers an ultra‑wide output voltage trim range of 0.59‑5.1 V, high efficiency (up to 92 %) and robust protection features such as short‑circuit and over‑voltage hiccup protection.

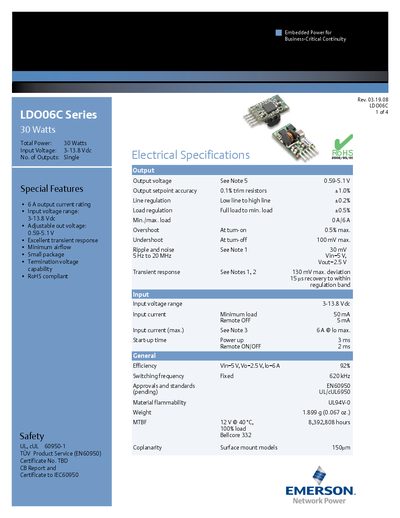

The document lists electrical specifications, environmental limits, mechanical drawings, pin functions and ordering part numbers. It also includes contact information for global support and notes that the data are preliminary and subject to change.
| Output voltage range | 0.59‑5.1 V |
|---|---|
| Efficiency (5 V in, 2.5 V out, 6 A) | 92 % |
| Switching frequency | 620 kHz |
| Input voltage range | 3‑13.8 V |
| Power rating | 30 W |
| Weight | 1.899 g |
| MTBF (12 V @ 40 °C) | 8,392,808 h |
| Line regulation | +0.2 % |
| Load regulation | +0.5 % |
The output voltage can be trimmed from 0.59 V to 5.1 V DC.
It reaches an efficiency of 92 %.
The input voltage must be greater than the programmed output voltage.
