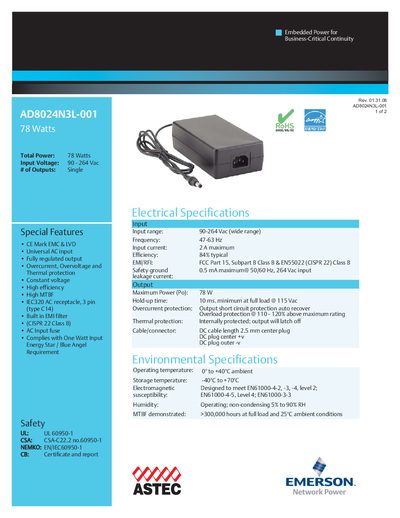

AD8024N3L-001 is a 78 Watt switching power supply with the following features: CE Mark EMC & LVD, Universal AC input, fully regulated output, overcurrent, overvoltage and thermal protection, constant voltage, high efficiency, high MTBF, IEC320 AC receptacle, 3 pin (type C14), built in EMI filter (CISPR 22 Class B), AC Input fuse, complies with One Watt Input Energy Star / Blue Angel Requirement requirement.
The AD8024N3L-001 provides embedded power for business‑critical continuity, offering a single 24 Vdc output with high efficiency (84% typical) and built‑in protections such as over‑current, over‑voltage, and thermal shutdown. It features a universal AC input range of 90‑264 Vac, CE marking, and compliance with Energy Star and Blue Angel requirements.
Key specifications include a total power of 78 W, input frequency 47‑63 Hz, and a hold‑up time of at least 10 ms at full load. The unit is certified to UL 60950‑1, CSA‑C22.2, EN/IEC60950‑1, and meets EMI/RFI standards. Physical dimensions are 44.0 mm × 79.6 mm × 149.0 mm, and it carries a 2‑year warranty.
| Total Power | 78 Watts |
|---|---|
| Input Voltage Range | 90‑264 Vac |
| Input Frequency | 47‑63 Hz |
| Input Current | 2 A max |
| Efficiency | 84% typical |
| Hold‑up Time | 10 ms minimum at full load |
| Operating Temperature | –? to +40 °C ambient |
| Storage Temperature | -40 °C to +70 °C |
| MTBF | >300,000 hours |
| Dimensions (H × W × L) | 44.0 mm × 79.6 mm × 149.0 mm |
The unit accepts a universal AC input range of 90‑264 Vac.
The typical efficiency is 84%.
It provides a minimum hold‑up time of 10 ms at full load.
