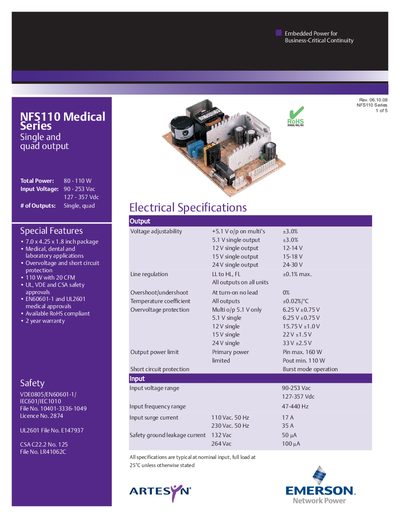

This document describes the features and characteristics of the embedded power product NFS110 Medical Series. It is suitable for medical, dental, and laboratory applications and has overvoltage and short circuit protection. It is UL, VDE, and CSA safety approved and has obtained EN60601-1 and UL2601 medical certifications. It is available with single or quad outputs, with a total power of 80-110W and an input voltage range of 90-253Vac and 127-357Vdc.
The NFS110 series is a medical‑grade embedded power supply offering single or quad outputs with total power ranging from 80 W to 110 W. It supports a wide input voltage range (90‑253 Vac, 127‑357 Vdc) and includes over‑voltage, short‑circuit protection, and UL, VDE, and CSA safety approvals.
The handbook details electrical and EMC characteristics, mechanical mounting options, connector types, and optional power‑fail‑detect circuitry. Environmental specifications such as operating temperature, humidity, and vibration limits are also provided, along with contact information for global support.
| Total Power | 80‑110 W |
|---|---|
| Number of Outputs | Single, quad |
| Safety Approvals | UL, VDE, CSA |
| MTBF | 125,000 hours minimum |
| Isolation Voltage | 4 kV |
The NFS110 provides between 80 W and 110 W of output power.
The unit is certified by UL, VDE, and CSA.
The minimum mean time between failures is 125,000 hours.
