The LPT80 series is a 80 watts embedded power with power factor correction, EN61000-3-2 compliance, universal input, 3x5 inches footprint, remote sense function, power fail and remote inhibit function, wide range adjustable function, built-in Class B EMI filter, overvoltage protection and overload protection.

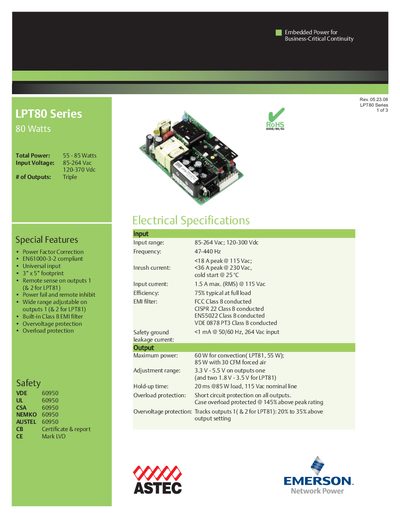

This handbook describes the LPT80 Series embedded power supplies, covering total power ratings, input voltage range, output options, and special features such as power factor correction and built‑in EMI filtering. It includes safety certifications, environmental specifications, and mechanical drawings with pin assignments for the various connector options.
The document also provides ordering information, MTBF data, and contact details for global support. Technical data such as efficiency, hold‑up time, overload protection, and temperature coefficients are listed to aid system designers and field technicians.
| Total Power | 55 - 85 Watts |
|---|---|
| Input Voltage | 85‑264 Vac |
| Efficiency | 75% typical at full load |
| Hold‑up Time | 20 ms @85 W load |
| MTBF | >550,000 hours at full load and 25 °C |
| Operating Temperature | 0 °C to 50 °C ambient |
| Weight | 0.8 lb (0.36 kg) |
The LPT80 Series provides a total power range of 55 to 85 Watts.
The MTBF is demonstrated to be greater than 550,000 hours at full load and 25 °C ambient temperature.
The units operate from 0 °C up to 50 °C ambient temperature.
