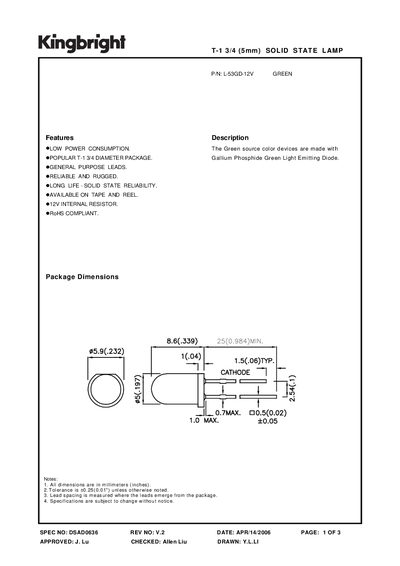

L-53GD-12V GREEN is a green light source color LED. It has low power consumption, popular T-1 3/4 diameter package, general purpose leads, reliable and rugged, long life - solid state reliability, available on tape and reel, 12V internal resistor and RoHS compliance.
The Kingbright L-53GD-12V is a 5 mm T‑1 3/4 solid‑state lamp that emits green light. It features low power consumption, a built‑in 12 V resistor, and is available in tape and reel packaging.
Key electrical parameters include a peak wavelength of 565 nm, forward current of 8.5 mA, reverse current of 10 µA, and a maximum forward voltage of 14 V. The device operates from –40 °C to +70 °C and complies with RoHS.
| Package Dimensions | 8.6 mm |
|---|---|
| Peak Wavelength | 565 nm |
| Dominant Wavelength | 568 nm |
| Spectral Line Half‑width | 30 nm |
| Forward Current (typical) | 8.5 mA |
| Reverse Current | 10 µA |
| Power Dissipation | 120 mW |
| Maximum Forward Voltage | 14 V |
| Maximum Reverse Voltage | 5 V |
| Operating Temperature Range | -40 °C to +70 °C |
| Storage Temperature Range | -40 °C to +85 °C |
The peak wavelength is 565 nm.
The device is rated for a reverse voltage of 5 V.
It operates from –40 °C to +70 °C.
