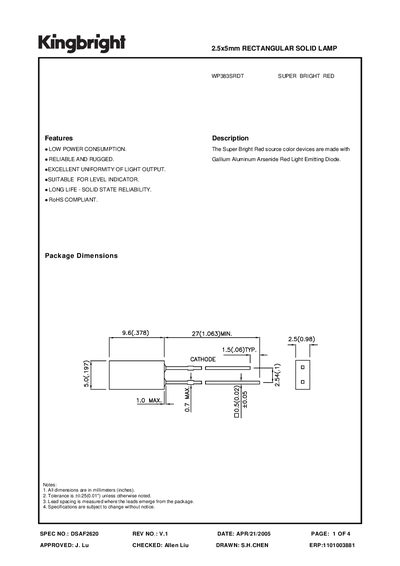

The document is the datasheet of Super Bright Red source color devices, which are made with Gallium Aluminum Arsenide Red Light Emitting Diode. It has low power consumption, reliable, rugged, excellent uniformity of light output, suitable for level indicator, long life, etc.
The WP383SRDT is a 2.5 mm × 5 mm rectangular solid-state lamp that offers low power consumption, high uniformity, and long life. It is RoHS compliant and suitable for level indicator applications.
The document lists detailed electrical and optical characteristics, absolute maximum ratings, derating curves, and packaging information. Key parameters include a peak wavelength of 660 nm, forward voltage of 1.85 V at 20 mA, and a power dissipation limit of 100 mW.
| Peak Wavelength | 660 nm |
|---|---|
| Reverse Current (5 V) | 10 µA |
| Power Dissipation | 100 mW |
| Operating Temperature | -40 °C to +85 °C |
| Capacitance | 45 pF |
The LED emits light with a peak wavelength of 660 nm.
Yes, the device is RoHS compliant.
The maximum reverse voltage is 5 V.
