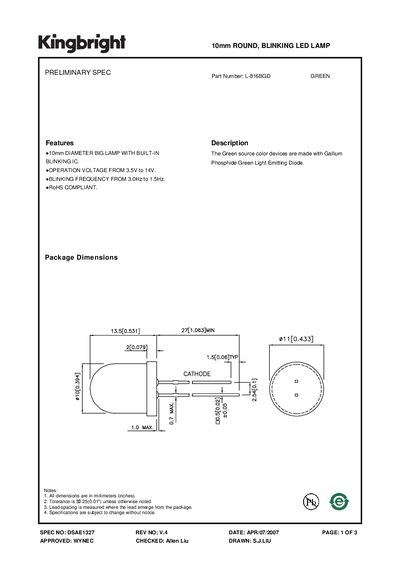

This document is the product manual for L-816BGD GREEN, which introduces the features of the product, including product dimensions, voltage, frequency, color, etc.
The Kingbright L-816BGD is a 10 mm round green LED that blinks autonomously. It uses a built‑in Gallium Phosphide (GaP) LED chip and complies with RoHS standards.
The device operates from 3.5 V to 14 V, with a forward current range of 8 mA to 22 mA and a blinking frequency of 1.5 Hz to 3 Hz. Key ratings include 310 mW power dissipation, operating temperature from –40 °C to +70 °C, and a lead solder temperature of 260 °C.
| Part Number | L-816BGD GREEN |
|---|---|
| Diameter | 10 mm |
| Forward Voltage | 3.5 V to 14 V |
| Blink Frequency | 1.5 Hz to 3 Hz |
| Forward Current | 8 mA to 22 mA |
| Supply Current (3.5 V) | 8 mA |
| Supply Current (14 V) | 44 mA |
| Power Dissipation | 310 mW |
| Operating Temperature | -40 °C to +70 °C |
| Storage Temperature | -40 °C to +85 °C |
| Lead Solder Temperature | 260 °C |
| RoHS Compliance | Yes |
The forward voltage ranges from 3.5 V to 14 V.
The LED blinks at a frequency between 1.5 Hz and 3 Hz.
Typical forward current is 8 mA to 22 mA.
Yes, the device is RoHS compliant.
