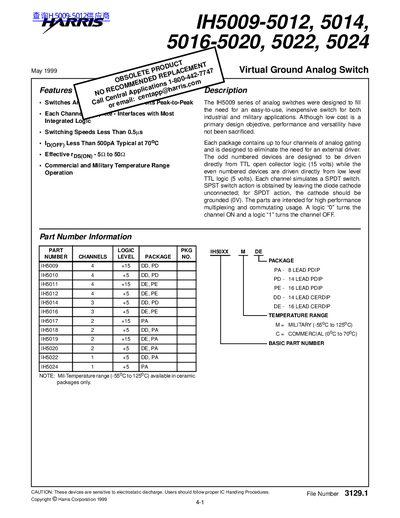

The IH5009 series analog switches are designed to fill the need for an easy-to-use, inexpensive switch for both industrial and military applications.
The IH5009 series analog switches from Harris are designed for industrial and military applications, offering up to four channels per package and eliminating the need for an external driver. Odd‑numbered devices accept 15 V TTL open‑collector inputs, while even‑numbered devices accept 6 V TTL logic.
The series provides multiple package types (PDIP, CERDIP) and operates over commercial (0 °C‑70 °C) and military (‑55 °C‑125 °C) temperature ranges. Detailed electrical specifications include low off‑state leakage, fast switching, and defined input and control voltage levels.
| Switching Speed | < 0.5 µs |
|---|---|
| Off‑State Leakage Current (ID(OFF)) | < 500 pA typical at 70 °C |
The switches operate with a switching speed of less than 0.5 µs.
The off‑state leakage current is less than 500 pA typical at 70 °C.
