DG200, DG201 are CMOS dual/quad SPST analog switches produced by Harris Corporation, using improved high voltage CMOS monolithic technology, providing ease-of-use and performance advantages not previously available from solid state switches

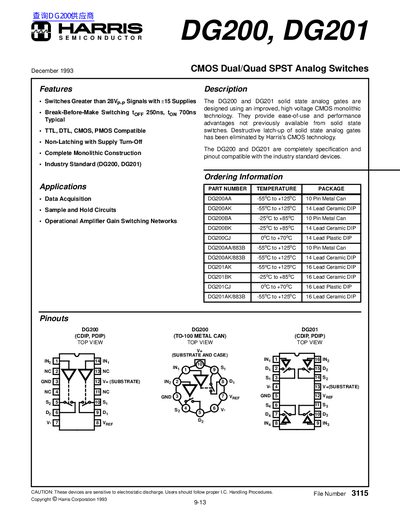

The document provides a comprehensive overview of the Harris Semiconductor DG200 (Dual) and DG201 (Quad) SPST Analog Switches. These devices utilize high voltage CMOS monolithic technology to handle signals greater than 28Vp.p with +15V supplies, offering break-before-make switching times as fast as 250ns typical.
The datasheet includes detailed electrical specifications for various temperature ranges (military, commercial/industrial), pinout diagrams for different package types (Metal Can, Ceramic DIP, Plastic DIP), and application circuits. It also covers absolute maximum ratings, thermal information, and metallization topology details.
| Switches Greater than 28Vp.p Signals with +15 Supplies | > 28Vp.p, +15V supplies |
|---|---|
| Break-Before-Make Switching Time (Typical) | < 250ns |
The typical break-before-make switching time is less than 250ns.
Yes, the DG200 and DG201 are TTL, DTL, and CMOS compatible.
