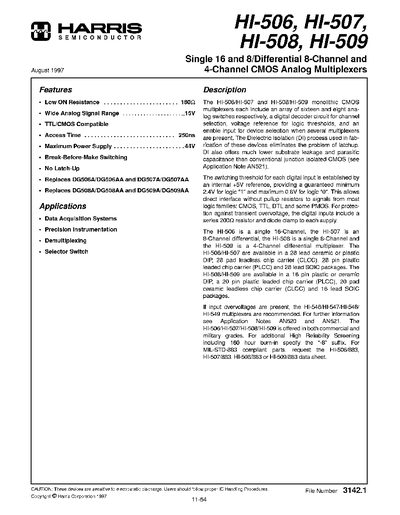

Harris HI-506/507/508/509 CMOS Analog Multiplexer Datasheet

Brand: Harris
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 16
File format: PDF
File size: 854 KB
Published: 05 June, 2012
Updated: 05 June, 2012
MD5 checksum: 6837BF1632F5E549BA851C6E06FCAB2A
PDF: Harris HI-506/507/508/509 CMOS Analog Multiplexer Datasheet PDF

About this manual

The document details four monolithic CMOS multiplexer models: the HI-506 (single 16-channel), HI-507 (differential 8-channel), HI-508 (single 8-channel), and HI-509 (differential 4-channel). These devices feature low ON resistance, wide analog signal ranges from -15V to +15V, and TTL/CMOS compatible logic inputs. They utilize a Dielectric Isolation (DI) process to eliminate latch-up issues and offer break-before-make switching.

What's inside

Features
Applications
Description
Ordering Information
Pinouts
Functional Diagrams
Schematic Diagrams
Absolute Maximum Ratings
Operating Conditions
Electrical Specifications

Specifications

Analog Signal Range	-15V to +15V
Access Time (Typ)	250ns
Maximum Power Supply	+/-4V
Channel Input Capacitance (HI-506)	10 pF
Off Isolation (Typ)	68 dB
