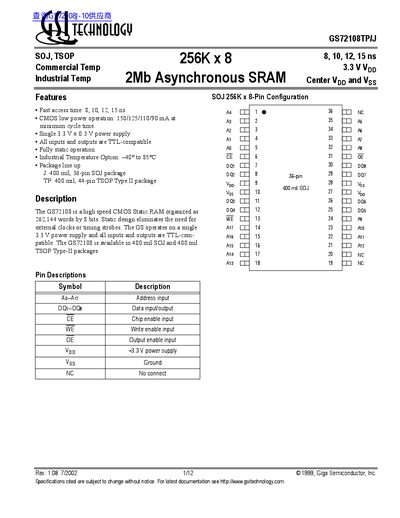

GS72108TP/J 256K x 8 2Mb Asynchronous SRAM 8, 10, 12, 15 ns 3.3 V VDD Center VDD and VSS SOJ, TSOP Commercial Temp Industrial Temp, fast access time, CMOS low power operation, single 3.3 V ± 0.3 V power supply, all inputs and outputs are TTL-compatible
The GS72108 is a high‑speed CMOS static RAM organized as 262,144 words by 8 bits. It operates from a single 3.3 V supply and offers TTL‑compatible inputs and outputs. The device is available in 400 mil SOJ (36‑pin) and 400 mil TSOP‑II (44‑pin) packages.
Key features include fast access times from 8 ns to 15 ns, low power consumption, and an industrial temperature range of 40 °C to 85 °C. Detailed electrical characteristics, timing diagrams, and ordering information are provided.
| Access time | 8‑15 ns |
|---|---|
| Supply voltage | 3.0 V – 3.6 V |
| Package options | 400 mil SOJ 36‑pin, 400 mil TSOP‑II 44‑pin |
| Industrial temperature range | 40 °C to 85 °C |
The device operates with a supply voltage between 3.0 V and 3.6 V.
It is offered in a 400 mil 36‑pin SOJ package and a 400 mil 44‑pin TSOP‑II package.
The SRAM provides access times of 8 ns, 10 ns, 12 ns, or 15 ns.
The industrial version operates from 40 °C up to 85 °C.
