The GS74104 is a high speed CMOS Static RAM organized as 1,048,576 words by 4 bits. It features 8, 10, 12, 15 ns fast access time, 150/125/110/90 mA low power consumption, single 3.3 V ± 0.3 V power supply, TTL-compatible all inputs and outputs, fully static operation, and an industrial temperature option of -40° to 85°C.

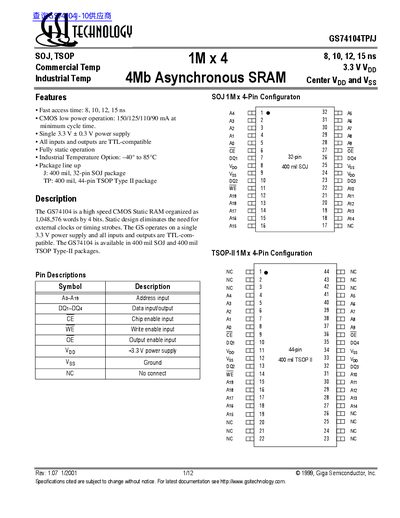

This handbook describes the GS74104TP/J static RAM, a high‑speed CMOS device organized as 1,048,576 words by 4 bits. It details the pin configuration, electrical characteristics, timing parameters, and package options (400 mil SOJ and TSOP‑II).
The document also includes absolute maximum ratings, recommended operating conditions, power‑supply current tables, AC characteristics, and ordering information for both commercial and industrial temperature grades.
| Memory organization | 1,048,576 words by 4 bits |
|---|---|
| Access time | 8‑15 ns |
The industrial temperature option is 40 °C to 85 °C.
The absolute maximum supply voltage is –0.5 V to +4.6 V.
The part number is GS74104TP-12.
