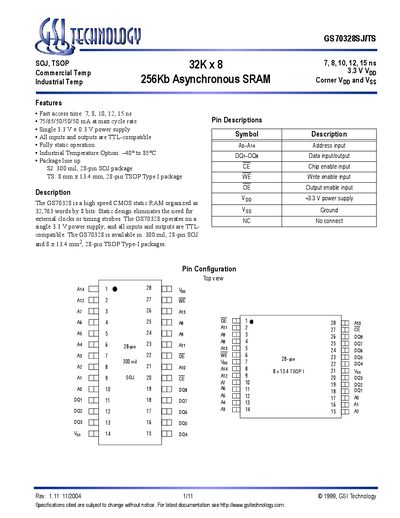

The GS70328 is a high-speed CMOS static RAM organized as 32,763 words by 8 bits. Static design eliminates the need for external clocks or timing strobes. The GS70328 operates on a single 3.3 V power supply, and all inputs and outputs are TTL-compatible. The GS70328 is available in 300 mil, 28-pin SOJ and 8 x 13.4 mm2, 28-pin TSOP Type-I packages.
The GS70328 is a high-speed CMOS static RAM organized as 32,763 words by 8 bits. It operates on a single 3.3 V power supply, and all inputs and outputs are TTL-compatible. The device eliminates the need for external clocks or timing strobes due to its static design.
The component is available in two package types: a 300 mil, 28-pin SOJ package and an 8 x 13.4 mm, 28-pin TSOP Type-I package. It offers access times of 7, 8, 10, 12, and 15 ns and is offered in both Commercial and Industrial temperature ranges.
| Supply Voltage | 3.3 V |
|---|---|
| Access Time | 7, 8, 10, 12, 15 ns |
| Operating Temperature (Industrial) | -40 to 85 °C |
The device offers access times of 7, 8, 10, 12, and 15 ns.
The industrial temperature option operates from 40° to 85°C.
The maximum allowable power dissipation is 0.7 W.
