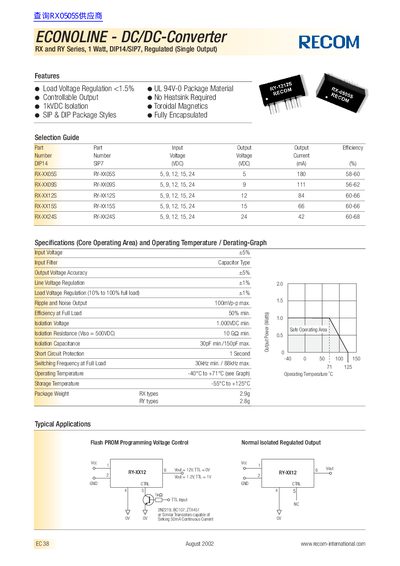

ECONOLINE - DC/DC-Converter RX and RY Series, 1 Watt, DIP14/SIP7, Regulated (Single Output) specifications, parameters, features
The ECONOLINE RX and RY series are 1‑Watt, single‑output DC/DC converters offered in 8‑pin DIP14 and 7‑pin SIP7 packages. They feature load voltage regulation better than 1.5 %, controllable output without a heatsink, and 1 kV isolation using toroidal magnetics.
The datasheet lists selectable input voltages (5‑24 VDC), output voltages (5‑24 VDC), efficiencies up to 68 %, and operating temperature from –40 °C to +71 °C. Package dimensions, pin assignments, and recommended footprints are also provided for PCB design.
| Load Voltage Regulation | <1.5% |
|---|---|
| Isolation Voltage | 1 000 VDC min |
| Switching Frequency at Full Load | 30 kHz – 88 kHz |
| Operating Temperature | -40 °C to +71 °C |
| Efficiency at Full Load | ≥50% |
The converters provide a minimum isolation voltage of 1 000 VDC.
The series is offered in 8‑pin DIP14 and 7‑pin SIP7 packages.
Load voltage regulation is better than 1.5 % across the full load range.
