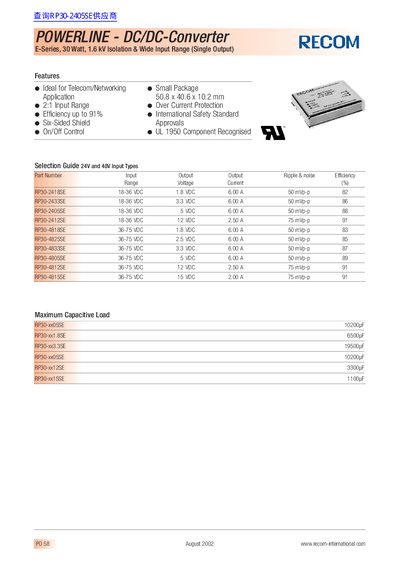

The product is a 30-watt E series DC/DC converter from recom, supporting 1.6 kV isolation and wide input range (single output). The features are 24V and 48V input range, optional output voltages of 1.8V, 2.5V, 3.3V, 5V, 12V and 15V, and maximum capacitive loads of 6500μF, 19500μF, 10200μF, 10200μF, 3300μF and 1100μF.
The POWERLINE series is a compact DC/DC converter designed for telecom and networking applications. It offers a single‑output configuration, up to 30 W power, 1.6 kV isolation, and a small 50.8 × 40.6 × 10.2 mm package.
Typical specifications include wide input voltage ranges (18‑36 VDC for 24 V nominal, 36‑75 VDC for 48 V nominal), 300 kHz switching frequency, up to 91 % efficiency, and built‑in over‑current and short‑circuit protection. The device meets UL 1950 safety standards and features a six‑sided shield for EMI/RFI mitigation.
| Input Voltage Range (24 V nominal) | 18‑36 VDC |
|---|---|
| Isolation Voltage | 1600 VBC min. |
| Switching Frequency | 300 kHz typ. |
| Dimensions | 50.8 × 40.6 × 10.2 mm |
| Maximum Case Temperature | +100 °C |
| Operating Temperature Range | -25 °C to +71 °C |
| Efficiency | up to 91 % |
The converter provides a minimum isolation voltage of 1600 VBC.
The device operates at a typical switching frequency of 300 kHz.
The module measures 50.8 × 40.6 × 10.2 mm.
Efficiency can reach up to 91 % depending on the configuration.
