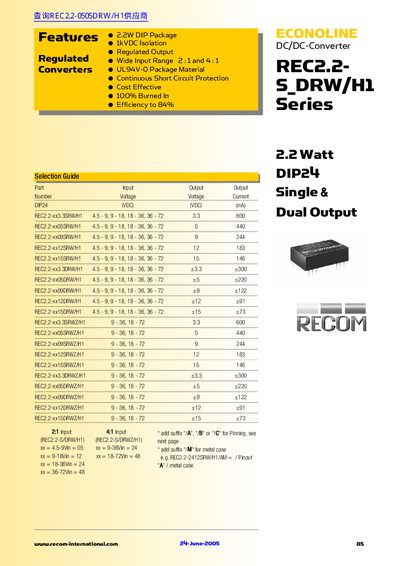

2.2 Watt DIP24 Single & Dual Output ECONOLINE DC/DC-Converter REC2.2-S_DRW/H1 Series, features 2.2W DIP Package, 1kVDC Isolation, Regulated Output, Wide Input Range 2 : 1 and 4 : 1, UL94V-0 Package Material, Continuous Short Circuit Protection, Cost Effective, 100% Burned In, Efficiency to 84%
The REC2.2 series is a 2.2 W isolated DC/DC converter offered in a DIP‑24 package. It supports both single and dual output configurations and features 1 kVDC isolation, regulated output, and built‑in circuit protection.
Key specifications include a wide input voltage range (2:1 & 4:1), high efficiency (up to 84 % at full load), low output ripple (50 mVp‑D max), and robust thermal performance. The datasheet provides detailed pin‑out, footprint, and mechanical drawing information for easy PCB integration. This manual is written in Japanese.
| Input Voltage Range | 2:1 & 4:1 |
|---|---|
| Output Voltage Accuracy | 19% max |
| Line Regulation | 0.2% max |
| Switching Frequency | 90 kHz min / 150 kHz max |
| No Load Power Consumption | 200 mW |
It supports a wide input range of 2:1 and 4:1 ratios.
The no‑load power consumption is 200 mW.
