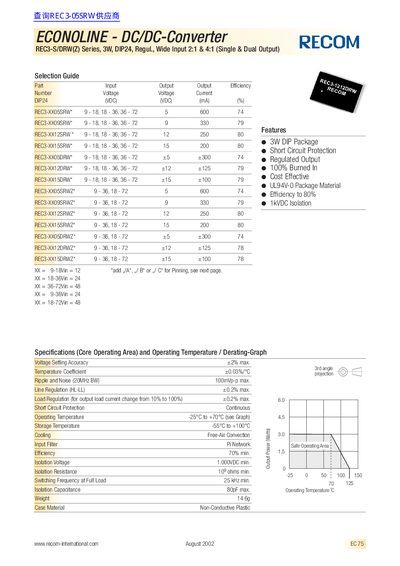

This datasheet provides information on the ECONOLINE - DC/DC-Converter REC3-S/DRW(Z) Series, 3W, DIP24, Regul., Wide Input 2:1 & 4:1 (Single & Dual Output) series, including product model, input and output voltage, output current, efficiency, etc.
The REC3‑S/DRW(Z) Series from RECOM provides 3 W DC/DC conversion in a compact DIP24 package. It supports wide input voltage ranges (9‑18 V, 18‑36 V, 36‑72 V) and offers both single (+5 V, +12 V) and dual output configurations with regulated voltage.
Key features include up to 80 % efficiency, 1 kVDC isolation, short‑circuit protection, and a 25 kHz switching frequency. The device is specified for operation from –25 °C to +70 °C, uses a non‑conductive plastic case, and includes a Pi‑network input filter for low ripple and noise.
| Input Voltage Range | 9‑18 V, 18‑36 V, 36‑72 V |
|---|---|
| Efficiency (max) | 80 % |
| Efficiency (min) | 70 % min. |
| Isolation Voltage | 1 000 VDC min. |
| Switching Frequency | 25 kHz min. |
| Voltage Setting Accuracy | +2 % max. |
| Temperature Coefficient | +0.03 %/°C |
| Line Regulation | +0.2 % max. |
| Operating Temperature | -25 °C to +70 °C |
| Storage Temperature | -58 °C to +100 °C |
| Case Material | Non‑Conductive Plastic |
| Input Filter | Pi Network |
| Ripple and Noise | 100 mVp‑p max. |
| Isolation Resistance | 10 % Ω min. |
| Cooling | Free‑Air Convection |
| Weight | 14.69 (unit not specified) |
The converters can reach up to 80 % efficiency.
They provide a minimum isolation voltage of 1 000 VDC.
The devices operate from –25 °C up to +70 °C.
