This document describes the features and characteristics of REC10-S_DRWL(Z) series 10W 1”x 2” ECONOLINE DC/DC converters, including size, input voltage range, output voltage accuracy, line voltage regulation, load voltage regulation, output ripple and noise, operating frequency, efficiency, isolation voltage, etc.

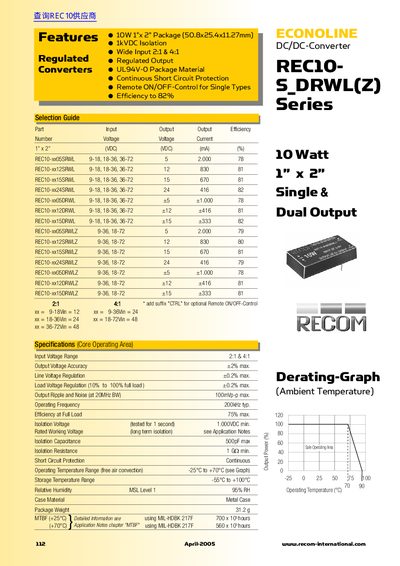

The REC10 series from RECOM offers 10 W DC‑DC converters in a compact 1" × 2" (50.8 × 25.4 × 11.27 mm) package. Available with single or dual outputs, the devices feature wide‑input ratios (2:1 & 4:1), regulated outputs, and optional remote ON/OFF control.
Key performance figures include up to 75 % efficiency at full load, 1 kVDC isolation voltage, and operation from –25 °C to +70 °C. The datasheet lists detailed pin connections, recommended footprints, and a selection guide covering input voltage ranges and output currents.
| Input Voltage Range | 21–44 V |
|---|---|
| Output Voltage Accuracy | +2 % max |
| Efficiency at Full Load | 75 % max |
| Operating Temperature Range | -25 °C to +70 °C |
| Package Weight | 31.29 |
| Case Material | Metal |
The REC10 achieves up to 75 % efficiency at full load.
Yes, optional remote ON/OFF control is available for single‑type devices.
The package measures 1" × 2" (50.8 × 25.4 × 11.27 mm).
