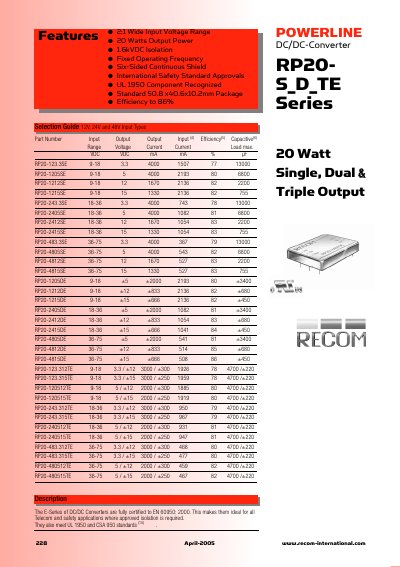

20 Watt Single, Dual & Triple Output POWERLINE DC/DC-Converter RP20-S_D_TE Series has 2:1 Wide Input Voltage Range, 20 Watts Output Power, 1.6kVDC Isolation, Fixed Operating Frequency, Six-Sided Continuous Shield, International Safety Standard Approvals, UL 1950 Component Recognized, Standard 50.8 x40.6x10.2mm Package, Efficiency to 86%
The RP20‑S_D_TE series from Recom International delivers up to 20 W of output power in single, dual or triple configurations. It features a wide 2:1 input voltage range, 1.6 kVDC isolation, six‑sided continuous shielding, and efficiency up to 86 %.
Typical specifications include input ranges of 9‑18 V, 18‑36 V and 36‑75 V, 300 kHz operating frequency, UL‑1950 and EN‑60950 safety approvals, and a compact 50.8 × 40.6 × 10.2 mm package weighing 48 g. The device meets stringent EMI and environmental standards, making it suitable for telecom and safety‑critical applications.
| Maximum Output Power | 20 W |
|---|---|
| Input Voltage Range | 9‑18 V (12 V nominal), 18‑36 V (24 V nominal), 36‑75 V (48 V nominal) |
| Isolation Voltage | 1.6 kVDC (minimum) |
| Efficiency | up to 86 % |
| Operating Frequency | 300 kHz (typ.) |
| Operating Temperature Range | -40 °C to +85 °C (derated) |
| Weight | 48 g |
| Dimensions | 50.8 × 40.6 × 10.2 mm |
It supports 9‑18 V for 12 V nominal, 18‑36 V for 24 V nominal, and 36‑75 V for 48 V nominal inputs.
The converter provides a minimum isolation voltage of 1.6 kVDC.
The series can achieve up to 86 % efficiency.
It is approved to UL 1950, EN 60950, and CSA 950 safety standards.
