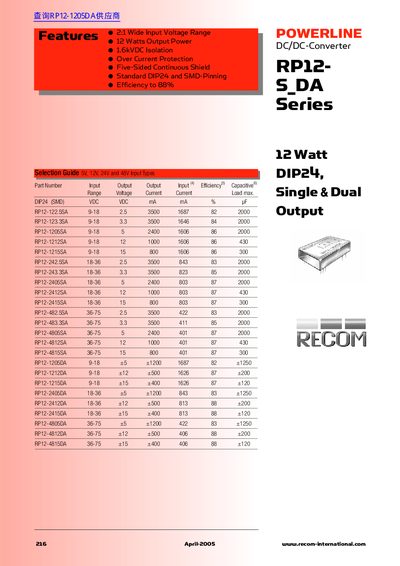

The RP12-S_DA Series is a 12 Watt DIP24, Single & Dual Output POWERLINE DC/DC-Converter from recom-international. It is available in DIP24 and SMD packages, supports 9-18V, 18-36V, 36-75V three input voltages, and outputs 2.5V-15V with a power of 12W. The module features 2:1 wide input voltage range, 1.6kVDC isolation, over current protection, five-sided continuous shielding, standard DIP24 and SMD-pinning, and efficiency up to 88%.
The RP12- S_DA series from RECOM delivers compact 12 W DC/DC conversion in a DIP24 package, available with single or dual output configurations. It supports a wide input voltage range (9‑18 V, 18‑36 V, 36‑75 V) and offers high efficiency up to 86 % across the operating range.
Key features include precise output voltage regulation (+/-1.2 % full load), built‑in over‑voltage, overload, short‑circuit and under‑voltage lockout protection, and 1 600 VDC isolation between input, output and case. The device operates up to 500 kHz, weighs 18 g and measures 31.8 × 20.3 × 10.2 mm.
| Input Voltage Range | 9‑18 VDC (12 V nominal), 18‑36 VDC (24 V nominal), 36‑75 VDC (48 V nominal) |
|---|---|
| Maximum Output Power | 12 W |
| Output Voltage Accuracy | ±1.2 % (full load, nominal Vin) |
| Isolation Voltage (Input‑to‑Output) | ≥1 600 VDC |
| Isolation Voltage (Input‑to‑Case) | ≥1 600 VDC |
| Operating Temperature Range | -40 °C to +85 °C (with derating) |
| Weight | 18 g |
| Dimensions (DIP24) | 31.8 × 20.3 × 10.2 mm |
The series accepts 9‑18 VDC for 12 V nominal, 18‑36 VDC for 24 V nominal, and 36‑75 VDC for 48 V nominal inputs.
Each device can deliver up to 12 W of output power.
The converters provide a minimum isolation voltage of 1 600 VDC between input and output and also between input and case.
