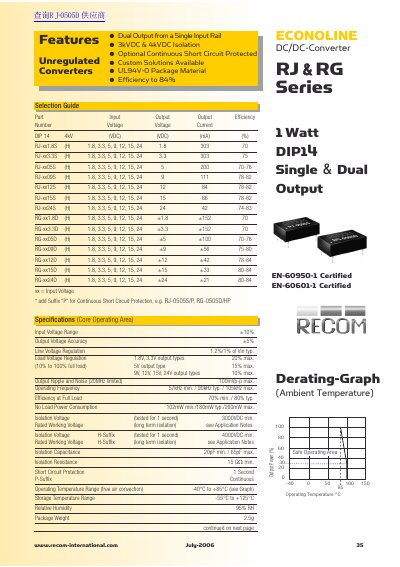

This document is the selection guide for Recom RJ series and RG series switching regulators. It introduces parameters such as input voltage, output voltage, output current, packaging, efficiency, etc.
The Recom RJ‑xxS and RG‑xxD series are ECONOLINE DC‑DC converters offering dual‑output configurations from a single input rail. The guide lists core operating parameters such as input voltage range, output accuracy, isolation voltage, efficiency, and thermal performance.
Technical data include recommended pinning, package dimensions, MTBF ratings, and optional short‑circuit protection options, helping designers choose the appropriate module for their power design needs.
| Input Voltage Range | ±10% |
|---|---|
| Output Voltage Accuracy | ±5% |
| Isolation Voltage (1 s test) | 3000 VDC min. |
| Efficiency at Full Load | 70 % min. |
The modules operate from –40 °C to +85 °C in free‑air convection.
No‑load power consumption is 102 mW minimum, 180 mW typical, and 260 mW maximum.
Both series use a 14‑pin DIP package rated for 1 W power.
