This document provides a selection guide from Recom International, including information on different models such as input voltage, output voltage, output current, and efficiency. It also provides specifications and characteristics such as input voltage range, output voltage accuracy, line voltage regulation, load voltage regulation, output ripple and noise, etc. The products have good isolation voltage and working voltage.

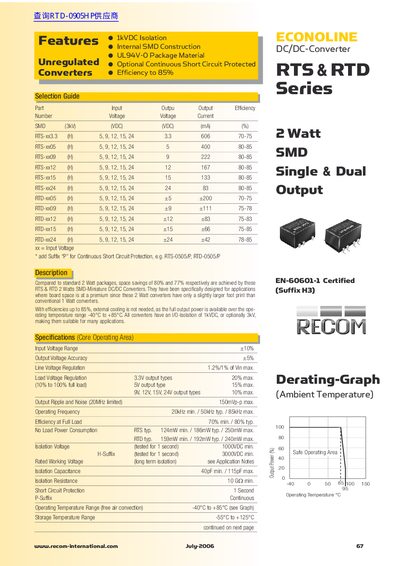

This document provides technical specifications, selection guides, and typical characteristics for the Recom RTS (single output) and RTD (dual output) Series of 2 Watt SMD-Miniature DC/DC Converters. These converters are designed to save board space compared to standard 2 Watt packages while offering efficiencies up to 85%.
| Output Power | 2 Watts |
|---|---|
| Efficiency | up to 85% |
| Isolation Voltage | 1kVDC or 3kVDC |
| Operating Temperature Range | -40°C to +85°C |
| Output Ripple and Noise | 150mVp-p max. |
The converters offer efficiencies up to 85%.
No, with efficiencies up to 85%, external cooling is not needed as the full output power is available over the operating temperature range.
