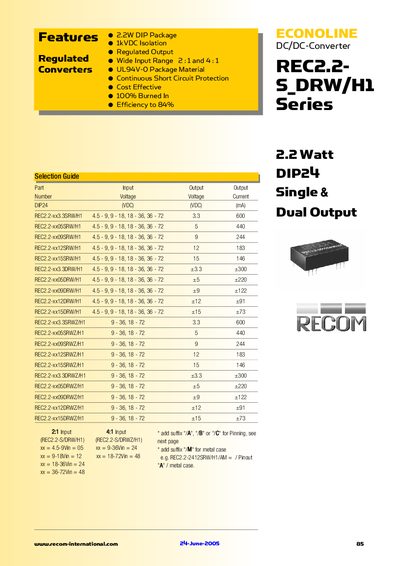

2.2 Watt DIP24 Single & Dual Output ECONOLINE DC/DC-Converter REC2.2- S_DRW/H1 Series features 2.2W DIP Package, 1kVDC Isolation, Regulated Output, Wide Input Range 2 : 1 and 4 : 1, UL94V-0 Package Material, Continuous Short Circuit Protection, Cost Effective, 100% Burned In, Efficiency to 84%
The REC2.2‑R_DRW/H1 series is a 1 kVDC isolated DC/DC converter offering regulated output with a wide input voltage range. Key features include high efficiency, dual‑output options, and built‑in circuit protection. The device is offered in DIP‑24 and metal‑case packages with various output voltage configurations.
The datasheet lists electrical specifications such as input voltage range, output voltage accuracy, line and load regulation, switching frequency, isolation voltage, and no‑load power consumption. Mechanical details include package dimensions, recommended footprint, thermal impedance, and MTBF values for different temperature classes.
| Input Voltage Range | 21& 41 |
|---|---|
| Output Voltage Accuracy | 19% max |
| Line Regulation | 0.2% max |
| Switching Frequency (full load) | 90 kHz min – 150 kHz max |
| No‑Load Power Consumption | 200 mW |
| Package Weight | 129 |
The input voltage range is 21& 41.
The output voltage accuracy is up to 19 % max.
The no‑load power consumption is 200 mW.
