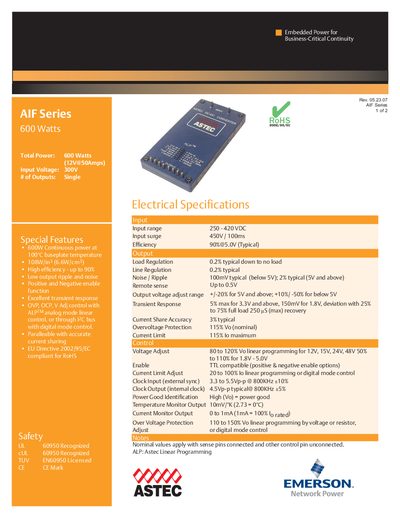

The document describes the features and characteristics of the Embedded Power for Business-Critical Continuity AIF Series 600 Watts.
The AIF Series from Emerson Network Power provides high‑efficiency, low‑ripple DC power for business‑critical applications. It supports a wide input voltage range (250‑420 VDC) and offers programmable output voltages from 1.8 V to 24 V with current ratings up to 120 A.
Key features include 90 % typical efficiency at 5 V, tight load and line regulation (0.2 % typical), remote‑sense capability, and extensive protection functions such as over‑voltage, over‑temperature, and current‑limit. The modules operate from –20 °C to +100 °C (case) and meet RoHS compliance.
| Input Voltage Range | 250‑420 VDC |
|---|---|
| Typical Efficiency | 90 % @5.0 V |
| Load Regulation | 0.2 % typical down to no load |
| Line Regulation | 0.2 % typical |
| Noise / Ripple | 100 mV typical (below 5 V); 2 % typical (5 V and above) |
| Operating Temperature Range (case) | -20 °C to +100 °C |
| Over‑Temperature Protection | 110 °C max |
The AIF Series accepts an input voltage from 250 VDC to 420 VDC.
Typical efficiency is 90 % when delivering 5 V.
They operate from –20 °C to +100 °C (case temperature).
Yes, it includes over‑temperature protection up to 110 °C.
