The document describes the features and characteristics of a product.

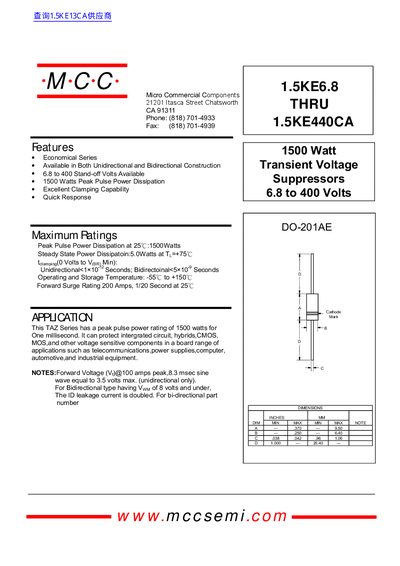

The 1.5KE series are 1500 W transient voltage suppressor (TVS) diodes offered in both unidirectional and bidirectional configurations. They are designed to protect ICs, hybrids, CMOS, MOS and other voltage‑sensitive components in telecommunications, power supplies, computer, automotive and industrial equipment.
The document lists detailed electrical ratings, characteristic curves, and dimensional data for part numbers ranging from 1.5KE6.8 up to 1.5KE440CA, including peak pulse power, stand‑off voltage, surge current and temperature limits.
| Peak Pulse Power Dissipation | 1500 W |
|---|---|
| Stand‑off Voltage Range | 6.8 V to 400 V |
| Steady State Power Dissipation | 5 W at +75 °C |
| Operating Temperature Range | -55 °C to +150 °C |
| Forward Surge Rating | 200 A, 1/20 s at 25 °C |
| Construction Types | Unidirectional and Bidirectional |
The series is rated for a peak pulse power of 1500 W for a 1 ms pulse.
They are available with stand‑off voltages from 6.8 V up to 400 V.
Yes, the series is offered in both unidirectional and bidirectional constructions.
