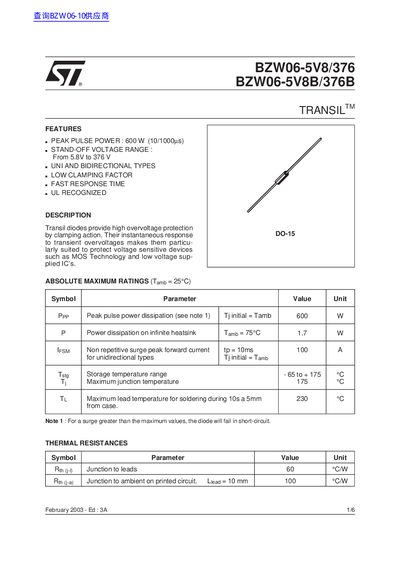

BZW06-5V8/376 is TRANSILTM, with a peak pulse power of 600W and a stand-off voltage range of 5.8V to 376V. It has bidirectional and unidirectional types, low clamping factor and fast response time.
The BZW06 Transil diodes are designed for high‑speed over‑voltage protection of voltage‑sensitive devices. They feature a peak pulse power of 600 W, a stand‑off voltage range of 5.8 V to 376 V, low clamping factor, fast response time, and UL recognition. Both unidirectional and bidirectional types are offered.
The devices are supplied in a DO‑15 plastic package (tape & reel) with a weight of 0.4 g. Absolute maximum ratings include a junction temperature of 175 °C, lead temperature of 230 °C for 10 s, and thermal resistances of 60 °C/W (junction‑to‑leads) and 100 °C/W (junction‑to‑ambient). The datasheet includes electrical characteristics, thermal performance graphs, and packaging dimensions.
| Peak pulse power | 600 W |
|---|---|
| Stand‑off voltage range | 5.8 V to 376 V |
| Junction‑to‑leads thermal resistance | 60 °C/W |
| Package type | DO‑15 (plastic) |
| Weight | 0.4 g |
The peak pulse power rating is 600 W.
They operate from 5.8 V up to 376 V stand‑off voltage.
