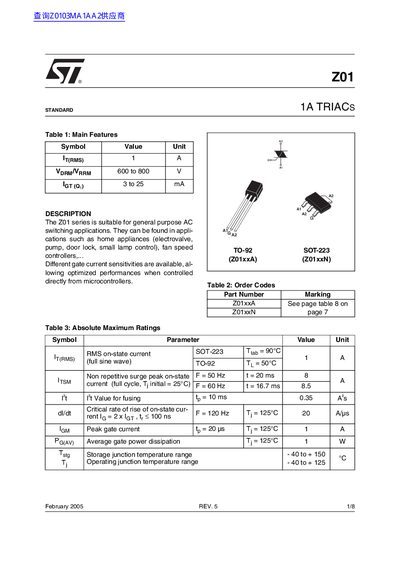

The Z01 series is suitable for general purpose AC switching applications. They can be found in applications such as home appliances (electrovalve, pump, door lock, small lamp control), fan speed controllers. Different gate current sensitivities are available, allowing optimized performances when controlled directly from microcontrollers.
The Z01 series TRIACs are intended for general‑purpose AC switching applications such as home appliances, electro‑valves, pumps, door locks and small lamp control. Different gate‑current sensitivities are offered to allow optimized performance when driven directly from micro‑controllers.
The document lists the main features, absolute maximum ratings, electrical characteristics, thermal resistances, mechanical dimensions for TO‑92 and SOT‑223 packages, and detailed ordering information including part numbers, sensitivities, voltage ratings and packaging options.
| Maximum RMS on‑state current (IT(RMS)) | 1 A |
|---|---|
| Maximum repetitive off‑state voltage (VDRM/VRRM) | 600 V to 800 V |
| Gate trigger current (IGT) | 3 mA to 25 mA |
| Thermal resistance junction‑to‑tab (SOT‑223) | 25 °C/W |
| Operating junction temperature range | -40 °C to +150 °C |
The maximum RMS on‑state current is 1 A.
The devices are rated for 600 V, 700 V, or 800 V depending on the part.
