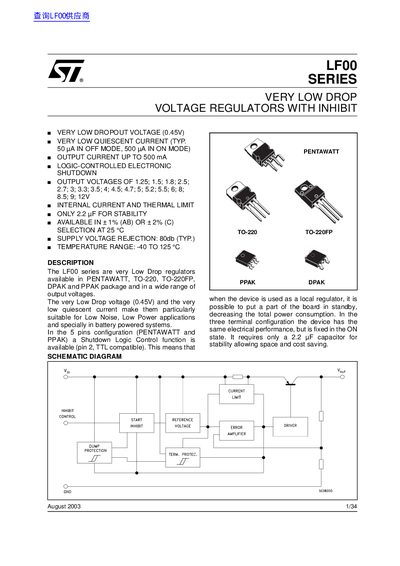

The LF00 series are very Low Drop regulators available in PENTAWATT, TO-220, TO-220FP, DPAK and PPAK package and in a wide range of output voltages.
The LFOO series are very low‑dropout (LDO) regulators offered in PENTAWATT, TO‑220, TO‑220FP, DPAK and PPAK packages. They provide a wide range of fixed output voltages and feature a logic‑controlled shutdown pin for power‑saving applications.
Key specifications include a typical dropout voltage of 0.45 V, quiescent current as low as 50 µA in OFF mode, and a supply‑voltage rejection of 80 dB. The devices operate from –40 °C to 125 °C and can deliver up to 500 mA of load current.
| Dropout Voltage (typical) | 0.45 V |
|---|---|
| Quiescent Current (ON mode, typical) | 500 µA |
| Quiescent Current (OFF mode, typical) | 50 µA |
| Maximum Output Current | 500 mA |
| Supply Voltage Rejection (typical) | 80 dB |
| Operating Temperature Range | -40 °C to 125 °C |
The typical dropout voltage is 0.45 V.
In ON mode the quiescent current is typically 500 µA.
The device can supply up to 500 mA of output current.
The typical supply‑voltage rejection is 80 dB.
