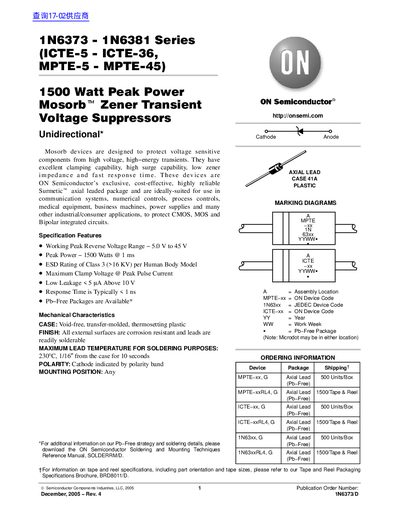

1500 Watt Peak Power Mosorb® Zener Transient Voltage Suppressors Unidirectional*
The 1N6373‑1N6381 series (ICTE‑5 to ICTE‑36, MPTE‑5 to MPTE‑45) are unidirectional Mosorb™ Zener transient voltage suppressors designed to protect voltage‑sensitive components from high‑energy transients. They are offered in the Surmetic™ axial‑lead package and are suitable for communication, control, medical, and power‑supply applications.
The document lists electrical and mechanical characteristics, maximum ratings, derating curves, and application guidelines such as response‑time considerations and duty‑cycle derating. Ordering information and package dimensions are also provided.
| Peak Power Dissipation | 1500 W @ T<25°C |
|---|---|
| Working Peak Reverse Voltage Range | 5.0 V to 45 V |
| ESD Rating | Class 3 (> 16 kV) per Human Body Model |
| Response Time | < 1 ns (typical) |
| Maximum Lead Temperature for Soldering | 230 °C (10 s) |
The series is rated for a peak power dissipation of 1500 W at temperatures below 25 °C.
They have a typical response time of less than 1 ns.
The devices operate over a reverse voltage range of 5.0 V to 45 V.
The maximum lead temperature for soldering is 230 °C for up to 10 seconds.
