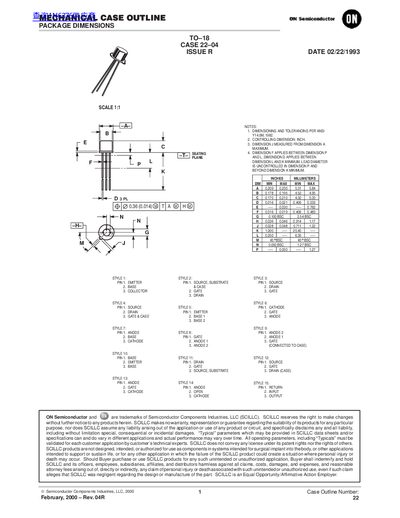

ON Semiconductor 22CASE 22‑04 Package Dimensions Datasheet

This document is the dimension information of the 22-type package

Brand: ON Semiconductor
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 1
File format: PDF
File size: 40 KB
Published: 08 May, 2012
Updated: 30 September, 2023
MD5 checksum: 46E8CBAF3AF6285FFDCDAF02300448ED
PDF: ON Semiconductor 22CASE 22‑04 Package Dimensions Datasheet PDF

About this manual

The document lists the mechanical dimensions, pin assignments and tolerances for the 22CASE 22‑04 semiconductor package. It follows ANSI Y14.5M standards for dimensioning and includes detailed tables for each case style.

Dimensions are given in both millimeters and inches, with minimum and maximum values for each feature. Notes describe the controlling dimension, measurement references and legal disclaimer information.

What's inside

Package Dimensions
Case Outline Number
Pin Configurations
Dimension Tolerances
Notes

Specifications

Dimension A (mm)	min 0.209, max 0.230
Dimension B (mm)	min 0.178, max 0.195
Dimension C (mm)	min 0.170, max 0.210
Dimension D (mm)	min 0.016, max 0.021
Dimension F (mm)	min 0.016, max 0.019

Frequently asked questions

What standard is used for the dimensioning and tolerancing?

The dimensions follow ANSI Y14.5M, 1982.

What is the case outline number for this package?

The case outline number is 22CASE 22‑04.

What are the pin assignments for style 1?

Pin 1 is Emitter, Pin 2 is Base, Pin 3 is Collector.

What are the minimum and maximum values for dimension A in inches?

Dimension A ranges from 0.00531 to 0.00584 inches.
