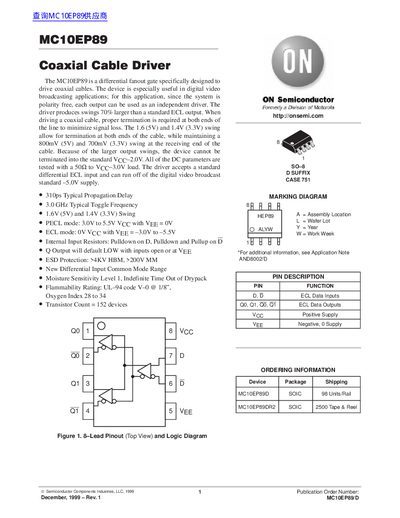

The MC10EP89 is a differential fanout gate specifically designed to drive coaxial cables. The device is especially useful in digital video broadcasting applications; for this application, since the system is polarity free, each output can be used as an independent driver. The driver produces swings 70% larger than a standard ECL output. When driving a coaxial cable, proper termination is required at both ends of the line to minimize signal loss. The 1.6 (5V) and 1.4V (3.3V) swing allow for termination at both ends of the cable, while maintaining a 800mV (5V) and 700mV (3.3V) swing at the receiving end of the cable. Because of the larger output swings, the device cannot be terminated into the standard VCC–2.0V. All of the DC parameters are tested with a 50Ω to VCC–3.0V load. The driver accepts a standard differential ECL input and can run off of the digital video broadcast standard –5.0V supply.
The MC10EP89 is a differential fan‑out gate designed to drive coaxial cables, offering larger output swings than standard ECL outputs. It supports both 5 V and 3.3 V swing modes and includes ESD protection, making it suitable for digital video broadcasting applications.
The document provides maximum ratings, DC and AC characteristics, pin descriptions, package dimensions, ordering information, and legal notices. All electrical parameters are measured with standard loading conditions and under specified temperature ranges.
| Maximum Toggle Frequency | 3.0 GHz |
|---|---|
| Typical Propagation Delay | 310 ps |
| Output Swing (5 V) | 1.6 V |
| Output Swing (3.3 V) | 1.4 V |
| ESD Protection | >4 kV HBM, >200 V MM |
| Continuous Output Current | 50 mA |
| Operating Temperature Range | -40 °C to +85 °C |
| Storage Temperature Range | -65 °C to +150 °C |
The typical propagation delay is 310 ps.
The device can toggle up to 3.0 GHz.
Proper termination is required at both ends of the line to minimize signal loss.
The output swing is 1.6 V for a 5 V supply and 1.4 V for a 3.3 V supply.
