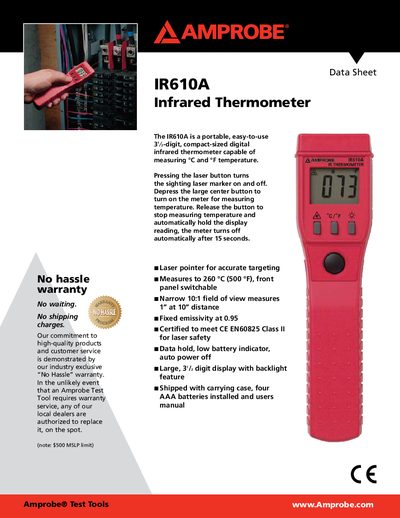

The document provides information about the features and customer service policy of Amprobe® Test Tools, as well as the functions and specifications of the IR610A Infrared Thermometer.
The IR610A is a compact, handheld infrared thermometer that measures temperature in both °C and °F. It features a 3.4‑digit LCD display, a laser sighting pointer, fixed emissivity of 0.95, and an automatic power‑off after about 15 seconds.
The data sheet lists performance specifications such as a temperature range of –20 °C to 260 °C, 3 % accuracy, 1‑second response time, and a 10:1 field of view. Physical details include dimensions of 170 × 44 × 40 mm, weight of 160 g, and a battery life of roughly 100 hours. The product is covered by a one‑year warranty.
| Temperature Range | -20 °C to 260 °C (0 °F to 500 °F) |
|---|---|
| Temperature Accuracy | ±3 % of reading or ±3 °C |
| Display | 3.4‑digit LCD, max reading 1999 |
| Measurement Rate | 2.5 times per second (nominal) |
| Response Time | 1 second |
| Field of View | 10:1, 1" at 10" distance |
| Emissivity | Fixed at 0.95 |
| Laser Safety Class | CE EN60825 Class II |
| Dimensions | 170 × 44 × 40 mm |
| Weight | 160 g (including batteries) |
| Battery Life | 100 hours (carbon‑zinc AAA) |
| Auto Power‑Off | Approximately 15 seconds |
| Operating Environment | 0 °C to 50 °C, <75 % RH |
| Storage Temperature | -20 °C to 60 °C |
| Warranty | One‑year |
The IR610A measures temperatures from –20 °C to 260 °C (0 °F to 500 °F).
The device provides about 100 hours of operation on a carbon‑zinc AAA battery.
It has a narrow 10:1 field of view that measures 1 inch at a distance of 10 inches.
Yes, it powers off automatically after approximately 15 seconds of inactivity.
