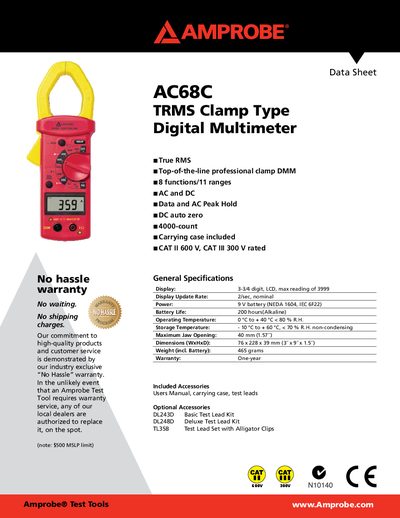

This document is a datasheet of Amprobe® Test Tools, which describes the features of high-quality products and customer service. It also provides details about the AC68C TRMS Clamp Type Digital Multimeter and its functions.
The AC68C is a True RMS clamp‑type digital multimeter designed for professional use. It offers 8 functions across 11 ranges, a 3‑3/4‑digit LCD, and a 40 mm jaw opening for measuring AC and DC currents.
Key specifications include a 9 V battery with 200 h life, CAT II 600 V / CAT III 300 V ratings, and measurement accuracies of ±0.75 % for DC voltage and ±1.2 % for AC voltage. The package comes with a carrying case, test leads, and optional lead kits.
| Display | 3-3/4 digit, LCD, max reading of 3999 |
|---|---|
| Display Update Rate | 2/sec, nominal |
| Power Supply | 9 V battery (NEDA 1604, IEC 6F22) |
| Battery Life | 200 hours (Alkaline) |
| Operating Temperature | -10 °C to +60 °C, <70 % RH non‑condensing |
| Maximum Jaw Opening | 40 mm (1.577 in) |
| Dimensions (W×H×D) | 76 × 228 × 39 mm (3" × 9" × 1.57") |
| Weight | 465 g |
| CAT Rating | CAT II 600 V, CAT III 300 V |
| Overload Protection Voltage | 1000 V DC / 750 V AC |
| Warranty | One‑year |
The package includes a user manual, a carrying case, and test leads.
It provides about 200 hours of operation on an alkaline 9 V battery.
The jaws open up to 40 mm (1.577 in).
It is rated CAT II 600 V and CAT III 300 V.
