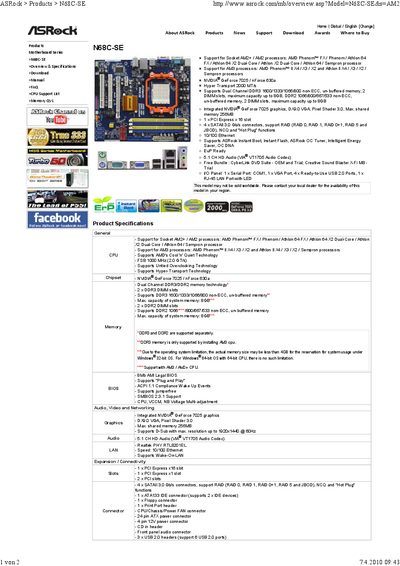

ASRock N68C-SE is an AM2+ / AM2 desktop motherboard that supports AMD Phenom™ FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processors, and equipped with NVIDIA® GeForce 7025 / nForce 630a graphics chip, supports dual channel DDR3 1600/1333/1066/800 non-ECC, un-buffered memory, 2 DIMM slots, maximum capacity 8GB, as well as DDR2 1066/800/667/533 non-ECC, un-buffered memory, 2 DIMM slots, maximum capacity 8GB.
This manual covers the ASRock N68C-SE Micro‑ATX motherboard, detailing its support for AMD AM2+, AM2 and AM3 processors, dual‑channel DDR2/DDR3 memory, integrated NVIDIA GeForce 7025 graphics, and a range of connectivity options. It also lists the included accessories, BIOS features, and safety cautions for over‑clocking.
Key sections include an overview of supported CPUs, memory configurations, expansion slots, I/O ports, and power management features, as well as a quick installation guide and troubleshooting notes.
| Chipset | NVIDIA GeForce 7025 / nForce 630a |
|---|---|
| SATA ports | 4 x SATA III 3.0 Gb/s connectors, RAID 0/1/0+1/5/JBOD, NCQ, Hot‑Plug |
| Integrated graphics | NVIDIA GeForce 7025, max shared memory 256 MB, DX9.0, Pixel Shader 3.0 |
| Audio codec | VIA VT1705 5.1‑channel HD Audio |
| Form factor | Micro ATX (9.6 in × 8.2 in, 24.4 cm × 20.8 cm) |
The board has four SATA III 3.0 Gb/s connectors that support RAID 0, RAID 1, RAID 0+1, RAID 5 and JBOD, with NCQ and Hot‑Plug functions.
It uses the VIA VT1705 5.1‑channel HD audio codec.
