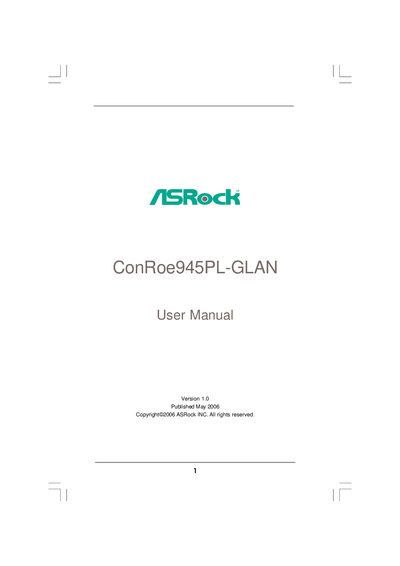

This document is the user manual for ConRoe945PL-GLAN published by ASRock INC. It describes the features and characteristics of the product.
This manual introduces the ConRoe945PL-GLAN ATX motherboard, lists the package contents, and details the hardware specifications such as CPU socket, chipset, memory, expansion slots, audio, and LAN. It also explains safety cautions and compliance information.
The guide walks users through step‑by‑step installation of the CPU, heatsink, memory modules, and other components, followed by BIOS configuration, driver installation from the support CD, and troubleshooting tips. It includes a section on software support and how to obtain updated drivers from the ASRock website.
| Form Factor | ATX (12.0‑in x 7.5‑in) |
|---|---|
| CPU Socket | LGA775 |
| Supported CPUs | Intel Dual Core Pentium D, Pentium 4, Celeron D, Core 2 Duo (Conroe, Presler, Cedar Mill) |
| Front‑Side Bus | 800/533 MHz |
| Chipset | Northbridge Intel 945PL, Southbridge Intel ICH7 |
| Memory Slots | 2 × DDRII DIMM, DDRII‑533, max 2 GB |
| Expansion Slots | 3 × PCI, 1 × PCI‑Express x16, 1 × PCI‑Express x1 |
| Audio Codec | Realtek ALC888 7.1‑channel |
| LAN | Realtek RTL8111B Gigabit (10/100/1000 Mb/s) |
| SATA Connectors | 4 × SATAII 3.0 Gb/s (no RAID, no hot‑plug) |
| BIOS | 4 MB AMI BIOS, AMI Legal BIOS, Plug‑and‑Play, ACPI 1.1 |
The motherboard supports Microsoft Windows 2000, Windows XP, Windows XP 64‑bit, and Windows Vista.
It provides four SATAII 3.0 Gb/s connectors.
The board uses a 4 MB AMI BIOS with AMI Legal BIOS and Plug‑and‑Play support.
Updated drivers are available on the ASRock website.
