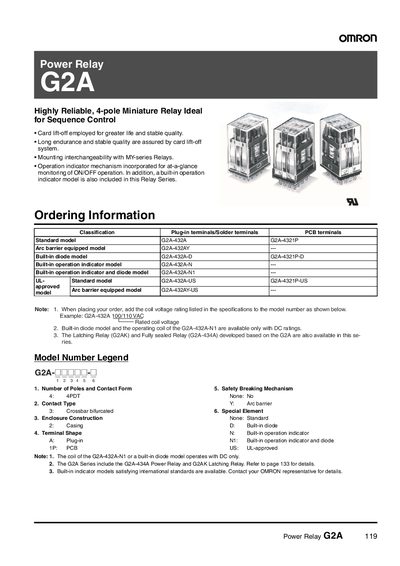

This file is about G2A series relay. This series relay has a long service life and stable quality.
The G2A series is a 4‑pole miniature power relay family designed for sequence control. It offers interchangeable mounting with the MY‑series, built‑in operation indicators, and optional arc‑barrier or diode models. Ordering information includes model suffixes that denote coil voltage, diode, or indicator features.
The document provides detailed electrical specifications such as coil voltage ranges, rated load currents, switching power, mechanical and electrical endurance, as well as mechanical dimensions, mounting options, and approved standards (UL508).
| Rated load (resistive) | 0.3 A at 110 VAC |
|---|---|
| Rated load (DC) | 0.5 A at 24 VDC |
| Rated carry current | 3 A |
| Maximum switching power | 250 VAC, 125 VDC |
| Mechanical endurance | 100 000 000 operations (18 k ops/hr) |
| Dielectric strength | 1 500 VAC, 50/60 Hz for 1 min |
| Weight | Approx. 38 g |
Add the coil voltage rating listed in the specifications to the model number (e.g., G2A‑432A 100/110 VAG).
Yes, the built‑in diode and built‑in operation indicator models are DC‑only and require correct coil polarity.
The relay can switch up to 250 VAC or 125 VDC.
Each relay weighs approximately 38 grams.
