Omron MX2 Born to drive machines Model: MX2 200 V Class Three-Phase Input 0.1 to 15 kW 200 V Class Single-Phase Input 0.1 to 2.2 kW 400 V Class Three-Phase Input 0.4 to 15 kW USER S MANUAL

MX2 is a three-phase input motor driver that is suitable for applications ranging from 0.1 to 15 kW.

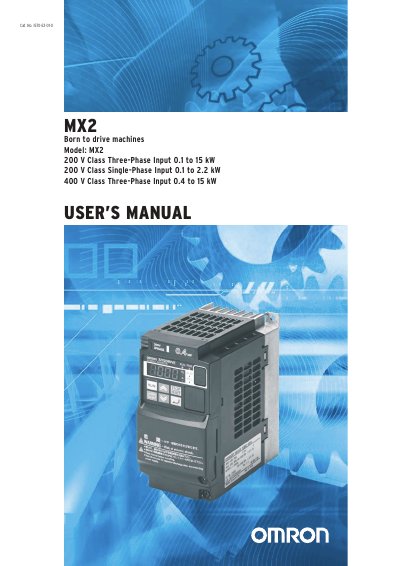

Omron MX2 Born to drive machines Model: MX2 200 V Class Three-Phase Input 0.1 to 15 kW 200 V Class Single-Phase Input 0.1 to 2.2 kW 400 V Class Three-Phase Input 0.4 to 15 kW USER S MANUAL - cover page
Brand
Omron
Document type
User Manual
Language
Chinese
Pages
356
File format
PDF
File size
13.1 MB
Published
07 May, 2012
Updated
30 September, 2023
MD5 checksum
EE545812FB329DBE8F56E980B3DBC5BF
PDF
Omron MX2 Born to drive machines Model: MX2 200 V Class Three-Phase Input 0.1 to 15 kW 200 V Class Single-Phase Input 0.1 to 2.2 kW 400 V Class Three-Phase Input 0.4 to 15 kW USER S MANUAL PDF

About this manual

The Omron MX2200 (MX2 series) inverter is a variable‑frequency drive for 0.1 kW to 15 kW motor applications. This manual provides detailed safety instructions, wiring guidelines, and performance data to ensure proper installation and reliable operation.

It includes step‑by‑step installation procedures, parameter configuration using the keypad or programming device, troubleshooting tips, and appendices on ModBus communication, EMC compliance, and safety standards (ISO 13849‑1). This manual is written in Chinese.

What's inside

  • Safety Messages
  • General Precautions
  • Getting Started
  • Inverter Mounting and Installation
  • Configuring Drive Parameters
  • Operations and Monitoring
  • Inverter System Accessories
  • Troubleshooting and Maintenance
  • Appendices

Specifications

Rated capacity (kVA) – 200 V models0.4 – 4.1 kVA
Rated input voltage – single‑phase200 V ± 15 % to 240 V + 10 %, 50/60 Hz ± 5 %
Rated output current (A)1.21 A – 9.61 A (model dependent)
Starting torque200 % at 0.5 Hz
