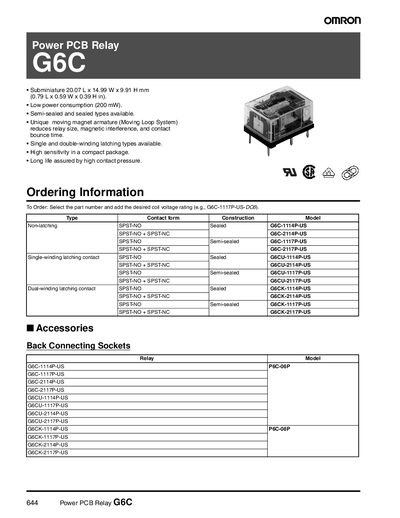

This document describes the features of Power PCB Relay G6C, including subminiature size, low power consumption, semi-sealed and sealed types available, unique moving magnet armature (Moving Loop System), single and double-winding latching types available, high sensitivity, and long life. It provides ordering information for different models and coil voltage ratings.
The G6C Power PCB Relay series from Omron offers sub‑miniature relays with low power consumption (200 mW) and a unique moving‑magnet armature that reduces size, magnetic interference, and contact bounce. Both non‑latching and latching types are available in sealed, semi‑sealed, and double‑winding configurations.
The datasheet lists detailed electrical and mechanical specifications, including contact ratings, coil data, operating temperature range, and approved safety standards (UL, CSA, VDE). Ordering information, terminal arrangements, and mounting dimensions are also provided for each model variant.
| Dimensions (L×W×H) | 20.07 mm × 14.99 mm × 9.91 mm |
|---|---|
| Power consumption | 200 mW |
| Maximum operating voltage | 380 VAC, 125 VDC |
| Maximum switching capacity (non‑latching) | 2,500 VA / 300 W |
| Coil inductance (example model) | 66.70 µH |
| Ambient temperature range | -25 °C to 70 °C |
| Weight | 5.6 g (0.20 oz) |
| Mechanical durability | 18,000 operations/hour |
| Insulation resistance | 1,000 MΩ min. (at 500 VDC) |
The relay measures 20.07 mm long, 14.99 mm wide and 9.91 mm high.
The relay can operate up to 380 VAC or 125 VDC.
The relay is specified for ambient temperatures from –25 °C to 70 °C.
