The G6C series PCB relays are small, low power relays from Emerson. The relays are available in semi-sealed and sealed structures, with single-pole and double-pole contact types to meet different application requirements.

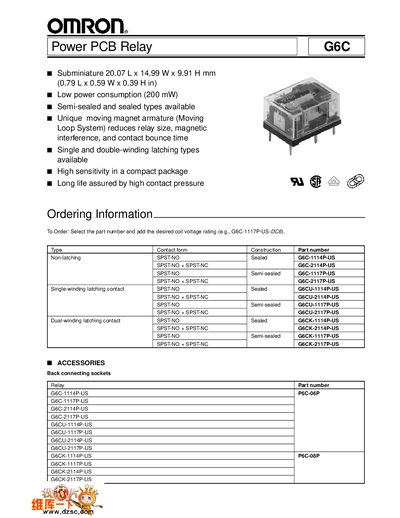

The Omron G6C series are compact, low‑power PCB relays available in non‑latching, single‑winding latching, and dual‑winding latching versions. They feature a unique moving‑magnet armature, high contact pressure, and options for sealed or semi‑sealed construction.
The document provides detailed contact ratings, coil characteristics, mechanical dimensions, mounting details, and approved safety standards (UL, CSA, VDE). Ordering information includes part numbers and selectable coil voltage ratings.
| Maximum switching capacity (non‑latching) | 2,500 VA, 300 W |
|---|---|
| Contact resistance (max) | 30 mΩ |
| Operate (set) time (max) | 10 ms |
| Weight | 5.6 g (0.20 oz) |
| Ambient temperature range | -25 to 70 °C |
The non‑latching G6C relay can handle up to 2,500 VA (300 W).
The contact resistance is limited to 30 mΩ maximum.
They are rated for ambient temperatures from –25 °C to 70 °C.
