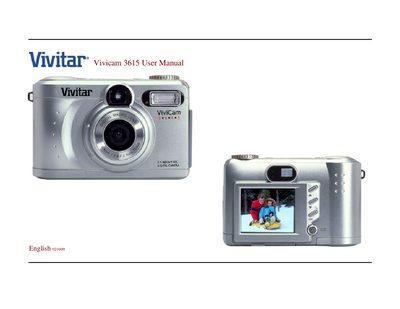

Vivicam 3615 User Manual
This manual introduces the Vivicam 3615 camera, lists the package contents, and explains how to identify the camera's parts. It includes important safety warnings, such as avoiding use when the camera emits smoke, heat, or moisture, and advises contacting an authorized service facility for repairs.
The guide covers quick‑start procedures, battery installation, using the AC adapter, transferring images via USB, and details the camera's technical specifications, including sensor type, resolution, memory, lens aperture, flash modes, and connectivity options.
| Image Sensor | CCD sensor with 2.1 mega pixels |
|---|---|
| Image Resolution | 1600x1200 / 800x600 |
| Color Depth | 24‑Bit Color (RGB) |
| Lens Aperture | 2.8 / 4.01 / 7.18 |
| Zoom | 2 × Digital Zoom |
| Internal Memory | 8 MB Flash Memory |
| External Memory | Compact Flash Card Type 1 Slot |
| LCD Display | 1.6" color LCD, 280 × 220 pixels |
| Built‑in Flash | Auto, Red‑eye Reduction, Forced Flash, Off |
| Self‑timer | 10 sec delay |
| Exposure | Auto; Manual 0.3 EV step, –1.8 ~ +1.8 EV |
| White Balance | Auto, Sun, Shade, Fluorescent, Tungsten |
| Connectors | AC power port, USB port, Video Output (NTSC or PAL) |
| Power | 4 × AA (Alkaline, NiMH, Lithium) or AC‑DC Adapter |
| Dimensions | 106 × 70 × 52 mm |
| Weight | ≈ 181 g (without battery and CF card) |
The camera is powered by four AA batteries (Alkaline, NiMH, or Lithium) and can also be used with an AC‑DC adapter.
The camera supports resolutions of 1600 × 1200 and 800 × 600 pixels.
